Motocross & Off-Road Skid Plates, Guards & Chassis Armor Technical Buying Guide

### The Vital Role of Off-Road Chassis & Engine Protection In competitive motocross, woods racing, and extreme enduro, the motorcycle's most vulnerable and expensive mechanical components are exposed directly to hostile terrain. Cast magnesium engine cases, water pump housings, oil filters, and fragile aluminum radiators sit inches away from jagged boulders, hidden tree stumps, and tire-flung roost. A single rock strike can crack an engine center case or puncture a water pump, causing instantaneous oil loss, engine seizure, and thousands of dollars in mechanical damage. High-performance armor provides impenetrable structural defense while preserving frame flex and damping engine noise.

### Common Stock OEM Failure Modes & Material Vulnerabilities Showroom production motorcycles leave the factory with minimal protection designed only for showroom display: 1. Thin Plastic Splash Shields: Factory skid plates are paper-thin plastic guards designed only to deflect light mud, offering zero structural puncture resistance against boulder impacts. 2. Exposed Water Pump & Ignition Covers: Stock splash guards leave fragile side engine covers completely exposed to lateral rock impacts and bent brake pedal punctures. 3. Vulnerable Radiator Cores: Delicate brazed aluminum radiators bend and twist in minor tip-overs, causing ruptured tanks and hose detachment that immediately overheats the engine. 4. Frame Spar Abrasion: Boot contact and grit grind deep grooves into aluminum frame spars and wear through paint on steel frames.

• Skid Plate Material Selection:

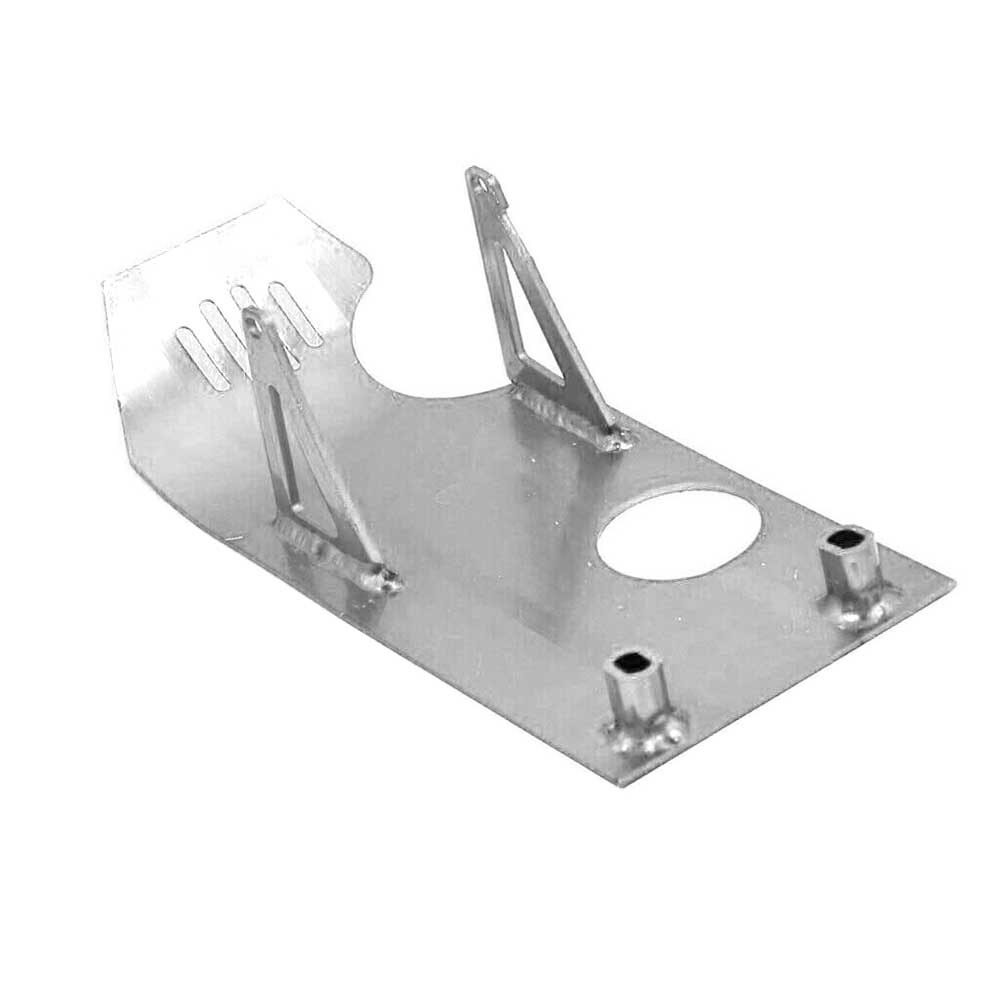

• *4mm Heavy-Duty 5083 Aluminum (e.g., AS3 Performance)*: Maximum puncture resistance and structural rigidity; features welded wrap-around side wings that shield water pump and ignition cases in rocky extreme enduro.

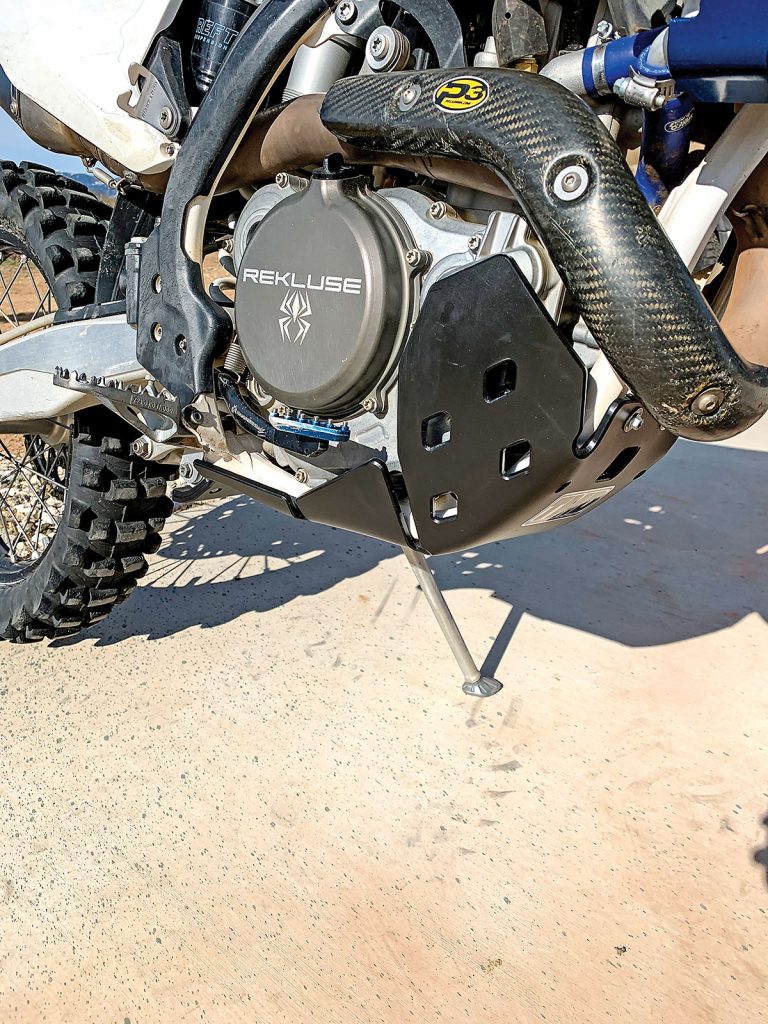

• *Return-Memory UHMW Composite (e.g., TM Designworks Baja)*: Ultra-slick bottom surface glides effortlessly over logs and boulders; flexes on impact and returns to shape without permanent bending.

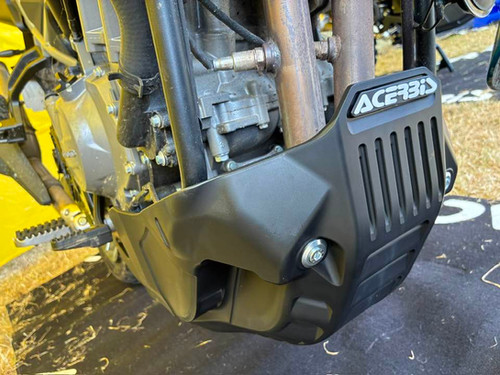

• *Multi-Layer Carbon Fiber (e.g., Acerbis Carbon)*: Featherweight aerospace protection with natural acoustic damping that eliminates engine clatter.
• Radiator Braces (Triangulated Billet Roll-Cages): Look for 4mm CNC 6061-T6 billet aluminum braces (like Flo Motorsports) that create a full structural roll-cage tying the radiator perimeter to the front frame downtube.
• Frame & Component Guards: X-Grip dual-injected frame guards provide impact defense for frame spars while offering vulcanized rubber grip surfaces for riding boots.
• Linkage Protection: Skid plates with extended rear linkage guards protect the lower shock knuckle from high-centering on rocks.

• Medium-Strength Blue Thread Locker: Apply to all skid plate, radiator brace, and case saver mounting bolts to prevent vibration loosening.
• Replacement Skid Plate Frame Clamps & Stainless Hardware: Ensure fresh clamps and countersunk washers are on hand for quick removal during deep servicing.
• Case Saver / Sprocket Guard: Heavy-duty billet or composite guard to protect engine cases from thrown drive chains.
• Anti-Vibration Rubber Foam Tape: Place between aluminum skid plates and frame rails to eliminate metal-on-metal chassis vibration and buzzing.
• Disc & Caliper Protectors: Shield front and rear brake rotors from boulder impacts and rut grooving.

### Step-by-Step Armor Installation & Maintenance Protocols Clean the frame rails thoroughly. Position the skid plate against the lower frame cradle, hooking rear brackets over frame cross-members. Install front mounting brackets with thread locker torqued to 10-12 Nm. Verify a 3-5mm clearance gap between the skid plate and engine cases to allow frame flex. Remove the skid plate during annual deep-cleaning cycles to wash out trapped gravel from the frame cradle.
